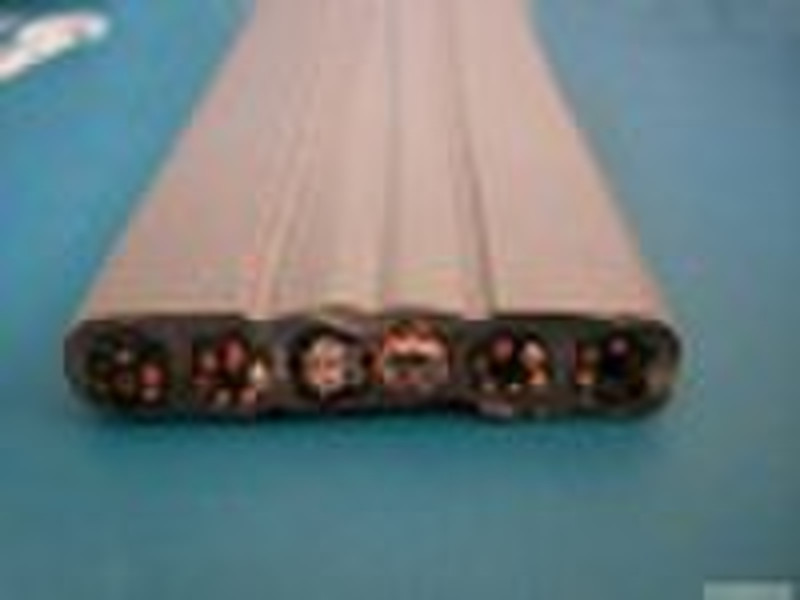

flat traveling cable for elevator
original price: 0,10 USD
Rachel Young
Contact person
Basic Information
| Brand Name | ECHU |
|---|---|
| Place of Origin | Shanghai China (Mainland) |
| Model Number | TVVB |
| Conductor Material | Copper |
| Insulation Material | PVC |
Properties: The outer sheath is extensively resistant to oil and cooling liquid. Standards:GB5023.6,IEC60227-6,EN 50214 Structure: Conductor: fine strands of bare copper wire, Acc.to VDE0295 CLASS5 Insulation:special PVC Colour:yellow,white,orangeg with black number with white digital coding Bearing:steel rope Outer sheath:flexible PVC,cold resistance ,flame resistance Colour:grey(RAL7001) Technical data: Rated voltage:300/500V Test voltage:2500V Minimum bending radius:0.3m<L<0.6M Burning vertically test:GB/T18380.1-2001 IEC60332-1.1 993 test passed Used under the nomal conditions.the temperature of conductor is lower than 70°C Temperature range:-15°C to +70°C TVVB (Parallel) free suspension length must not exceed 35 meters,and the lift speed 1.6m/s. TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.C
Delivery terms and packaging
Packaging Detail: wooden reel Delivery Detail: within 15 days
Port: Shanghai Seaport
