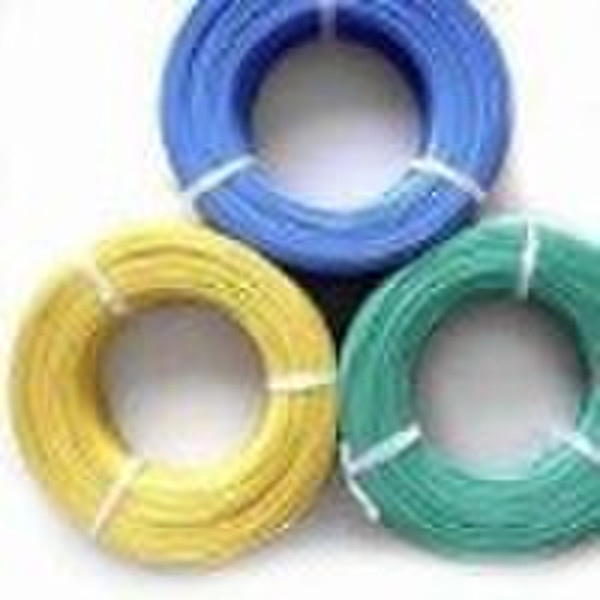

Hook up wire
Rachel Young
Contact person
Basic Information
| Place of Origin | Shanghai China (Mainland) |
|---|---|
| Brand Name | echu |
| Model Number | RV/AVR/BVR |
| Type | Insulated |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Insulation Material | PVC |
Applications: As measuring, monitoring and control cable, it is suitable for the places of machine tool manufacturing, complete equipment installation engineering, power station, refrigeratory equipment, OA equipment, data processing system and heating and air-condition system. Properties: Heat resistance, good insulation property, excellent chemical performance, extruding sheath Standards: UL 758 Structure: Conductor: fine strands of tinned copper wire, exellent corrosion resistance. Insulation: special PVC Colour: acc. to UL 758 Sheath: 80 heat-resistant flame-resistant PVC, pass VW-1 flame testing Colour: black (RAL9005) green (RAL6018) Orange(RAL2003) purple(RAL4001) Or refer to customers requirement. Technical data: Rated voltage: 300V Test voltage: 2000V Temperature range: Fixed installation: -40--+80 Flexing installation: -10--+80 The minimum bending radius: Fixed installation: 4×external diameter Flexing installation: 15×external diameter
Delivery terms and packaging
Packaging Detail: wooden reel Delivery Detail: 8 days after receiving deposit
